Description
This ultra-thin square LED recessed panel is designed for clean ceilings and even, comfortable illumination. The flat diffuser delivers smooth, uniform light with no visible hotspots, creating a soft glow that feels natural and easy on the eyes. Its true square design ensures a precise fit, making it ideal for modern interiors where symmetry and clean lines matter.

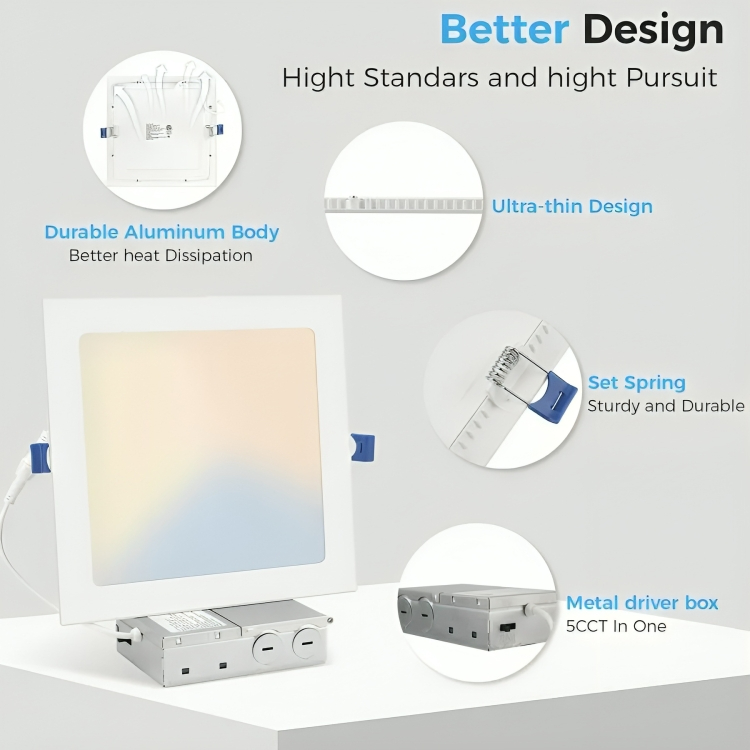

Built with a durable aluminum body, the panel efficiently dissipates heat to maintain stable brightness over time. The low-profile structure allows installation in tight ceiling spaces, while the solid metal driver box adds reliability and long-term performance. Flicker-free operation further enhances visual comfort, making it suitable for bedrooms, kitchens, living rooms, offices, and other everyday spaces.
This panel light features a built-in 5-CCT selector, allowing you to switch between multiple color temperatures to match different rooms or moods. With smooth dimming compatibility and a wide voltage range, it integrates easily into most residential lighting systems. Each order is supplied as a 12-pack, making it ideal for full-room installations, remodels, or multi-space projects where consistent lighting is required.
Specifications
General
| Feature | Specification |
|---|---|
| Fixture type | Square recessed LED panel light |
| Body material | Aluminum |
| Design | Ultra-thin, flat panel |
| Light output | Uniform, soft, non-dazzling |
| Flicker | Flicker-free |

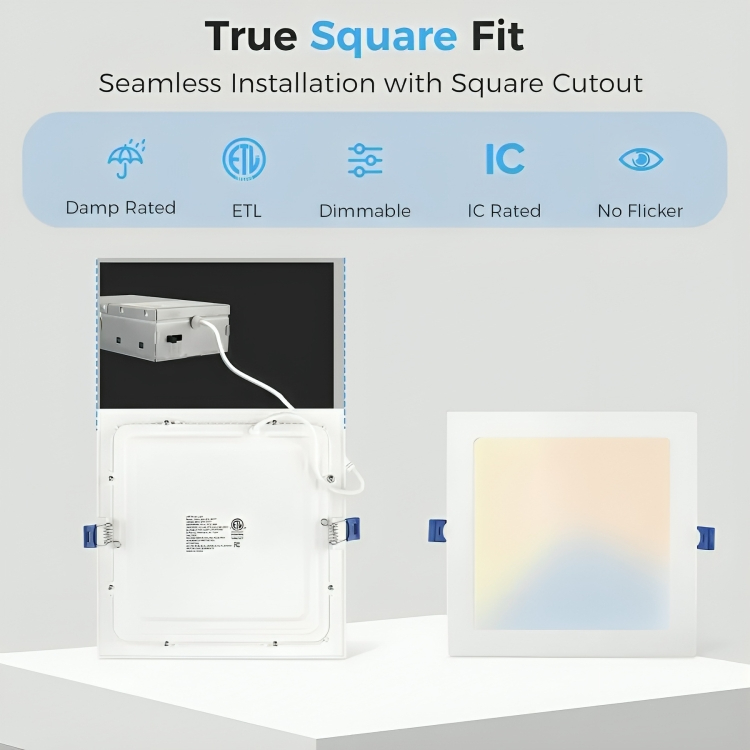

| Installation | Recessed, spring clip mounting |
| Rated voltage | 90–130 VAC |

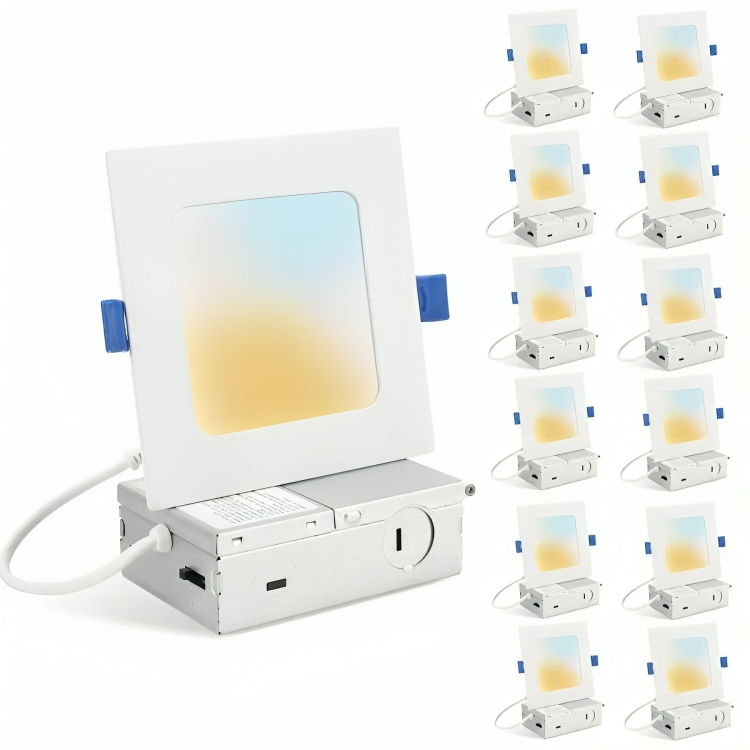

| Package quantity | 12 lights per set |
Optical Performance
| Feature | Specification |
|---|---|
| Power | 12W (per light) |
| Brightness | 800 lumens (per light) |
| Incandescent equivalent | 50W (per light) |
| Dimming | Smooth / stepless dimming (compatible with most dimmers) |
Color Temperature (5-in-1 Selectable)
| Setting | Typical Use |
|---|---|
| 2700K | Bedroom |
| 3000K | Kitchen |
| 3500K | Bathroom |
| 4000K | Living room |
| 5000K | Basement / utility areas |

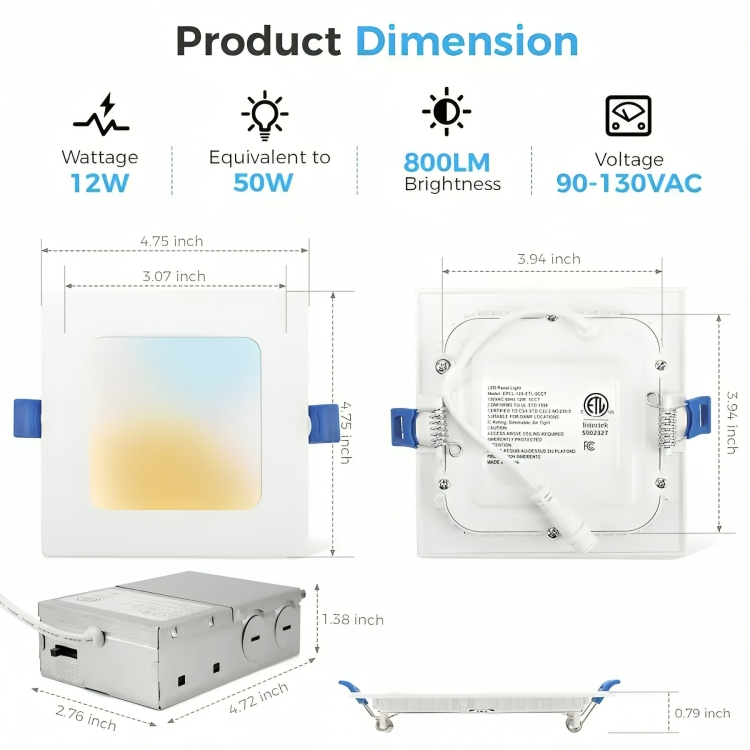

Dimensions (Inches & Millimeters)
Light Panel
| Dimension | Size |
|---|---|
| Outer width | 4.75 in (120.7 mm) |
| Inner cut-out | 3.07 in (78 mm) |
| Panel height | 4.75 in (120.7 mm) |
| Panel thickness | 0.79 in (20 mm) |
Driver Box
| Dimension | Size |
|---|---|
| Length | 4.72 in (120 mm) |
| Width | 2.76 in (70 mm) |
| Height | 1.38 in (35 mm) |
